2850 Series Static Mixers

Google Search Our Web Site:



2850 Series static mixers are the "full body" or "double flanged" version of the 2800 Series Wafer-Style Static Mixer.

This range has most of the advantages of the 2800 Series mixer, but is built into a spool with flanges or fittings to meet your piping system at each end - ideal for special purpose or retrofit replacement. This is convenient when retrofitting into existing piping systems or replacing traditional type static mixers.

The advantages are:

  • High performance mixing - CoV of 0.05 or better
  • Published headloss - kV of 32.59 or better
  • Simple installation (via customised spool design)
  • Ports to connect to chemical assemblies are built in to the spool. Unless otherwise specified.
  • Sustainable - no maintenance or energy costs
  • Easy to clean
  • Minimal or zero ragging
  • CFD reports available
  • White Papers available
Series Brochure Description Diagram
Series 2850 A full body or "double flanged" variant that can be multistage if the application requires 2850 Series

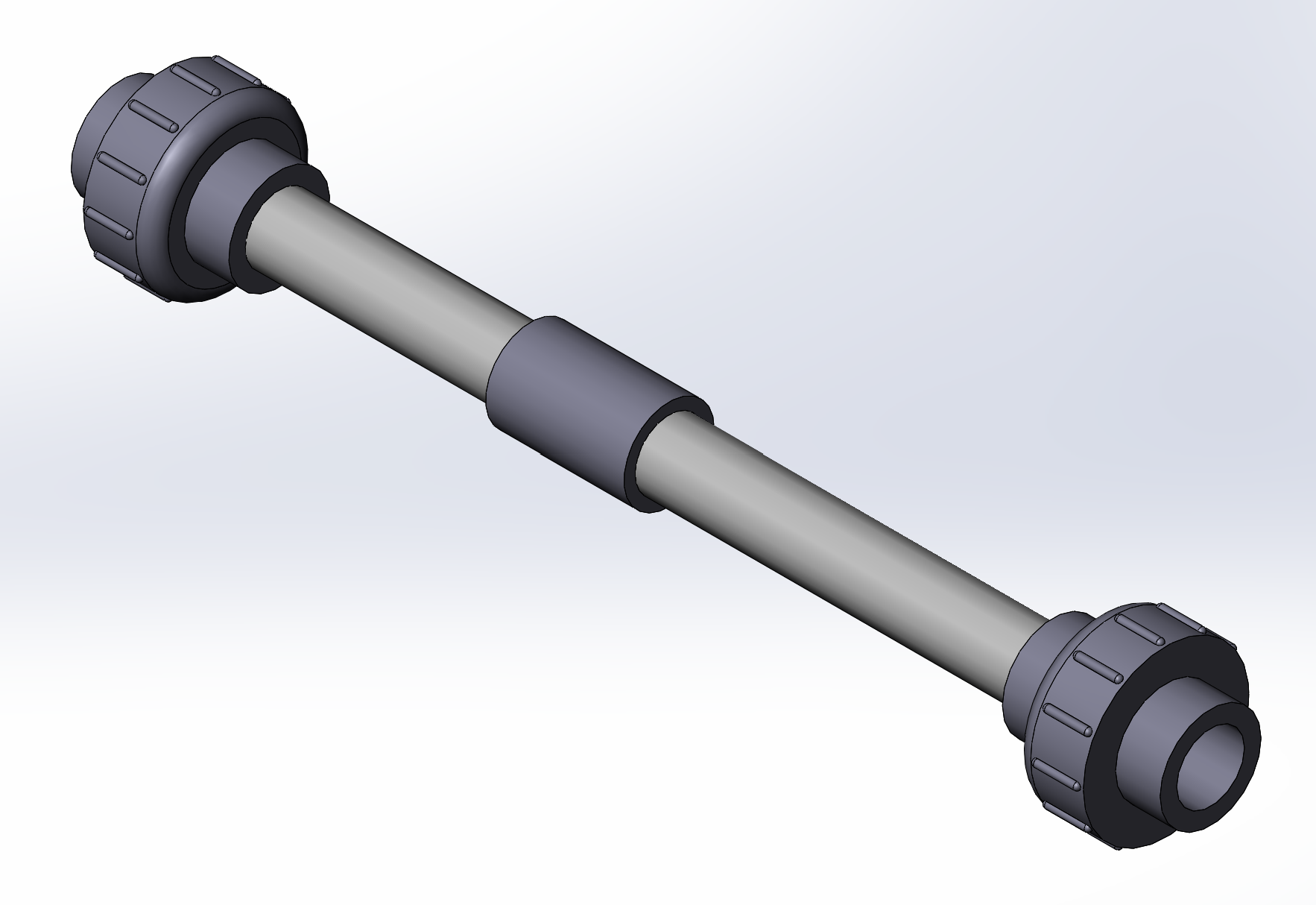

2850SM

The 2850SM range is a low specification model.

This range is in PVC only with sizes up to DN50.

2850 Series

Westfall Static Mixers have predictable headloss co-efficients.

Click Here for a chart that indicates the head loss coeffient of each model.

Capabilities

H2O Rx is the exclusive Australian licensee and distributor of the Westfall Manufacturing range of static mixers manufactured in both Australia and USA.

H2O Rx and Westfall Manufacturing design and build static mixers to meet your application's needs:

Size Range: DN15 to DN3000

Materials Include:

  • PVC
  • FRP
  • 316 stainless steel
  • Carbon steel
  • Titanium
  • Kynar
  • Teflon

Applications:

  • All fluids - liquids and gases
  • Municipal and industrial water treatment
  • Potable water
  • Waste water
  • Irrigation
  • Chlorination / dechlorination
  • Chemical blending
  • Dissolving gases
  • Flocculent blending
  • pH control
  • Polymer blending
